Mission Folding Chair©
Woodworking Plans
Dimensions - 23 1/2"W x 22"D x 36 1/2"H (59.7cmW x 56cmD x 92.7cmH)

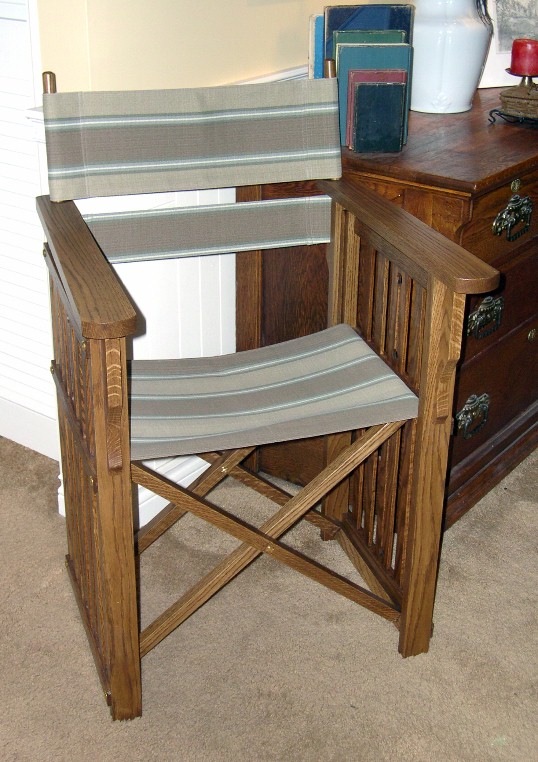

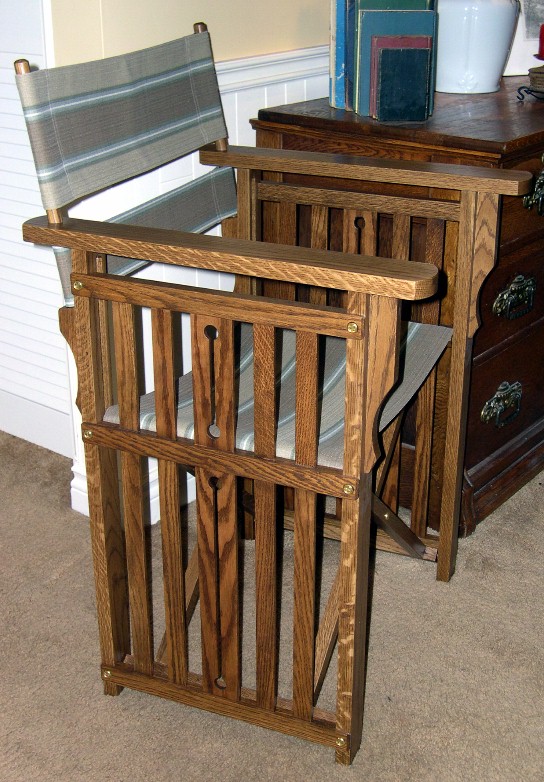

Unlike a regular folding directors chair, which uses metal braces, this design is completely made of wood except for two bolts. This chair utilizes a dowel ended cross support that runs in a dadoed slot in the legs.
In designing this chair, I felt it was important to keep the integrity of the original chair, made by my Grandfather in the 1930's. I have refurbished the last 2 original chairs, but I find that they are too small for most people.The new design is 3" wider and 2" taller, so it can be used at a regular height dining table. I have changed the design by adding mission style side panels for strength, ease of assembly and material replacement when needed.

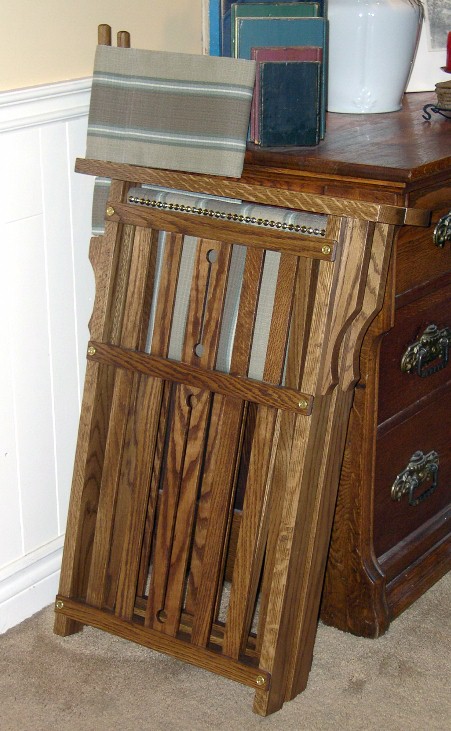

As seen in the pictures above, the chair folds to 5" wide for easy storage. Great for carrying in your trunk for the kids ball games, picnics, the beach or tucking away in a corner for extra seating when guests arrive.
The Adobe PDF plans include 38 colored, step by step images, that you can zoom in on to get a closer look. There are also 4 pages of sized images with all dimensions shown. The only templates necessary are the arm supports and back dowel supports, that are supplied on 1/4"x1/4" graph paper for easy copying.
You will need a table saw, router and table, band saw, stationary sander, drill press and dado blade.
The downloadable instructions are on Adobe Acrobat . Directions for building a Taper Sled, are also included. All plans are in standard and metric dimensions.
For your FREE download, click For FAQ's regarding .pdf downloads, click here.
2007 Copyright, The Barley Harvest, all rights reservedDOWNLOADABLE PLANS
THROUGH CLICKBANK'S SECURE SITE
Mission Folding Chair $4.95 You will be taken to a receipt page, then a thankyou page with the web page address of the plan, after paying.
Check out the feedback comments on Excellent Transaction! Thanks for a fool proof plan! 01-Dec-07
Mission Folding Chair Plans - Downloadable (#160180017287)
Great Transaction! Love the digital download! Thanks. A++++ 25-Dec-07
Mission Folding Chair Plans - Downloadable (#370007155303)
Great product and service. Thank you. 05-Feb-08
Mission Folding Chair Plans - Downloadable (#370014642606)
Buy All 24 Downloadable Plans for $29.95
SAVE OVER $75.00
You will receive one Thank You Page listing all plans and PDF links by category
13 OUTDOOR, 5 FURNITURE, 4 GAMES, 2 CLOCKS
